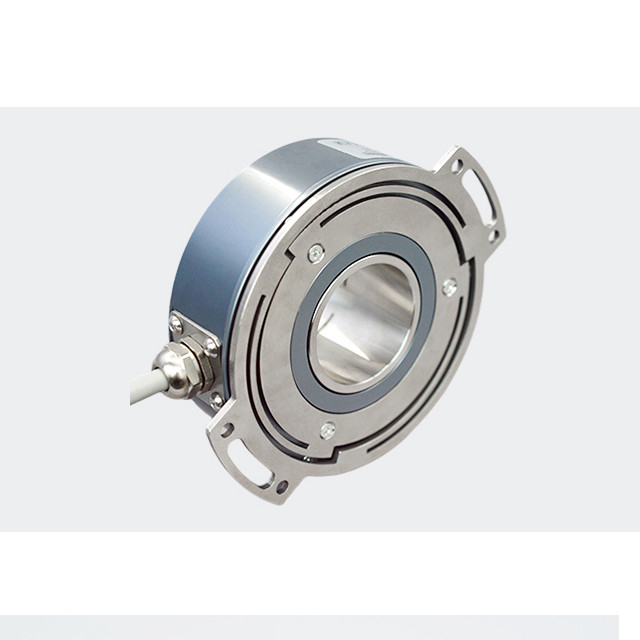

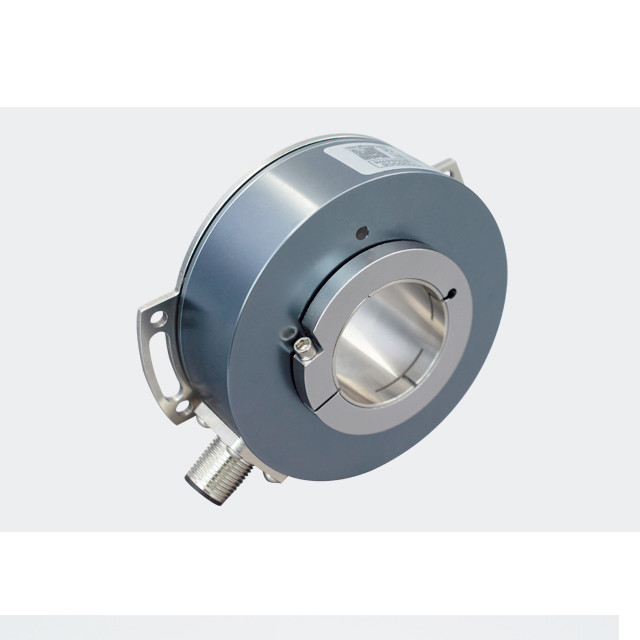

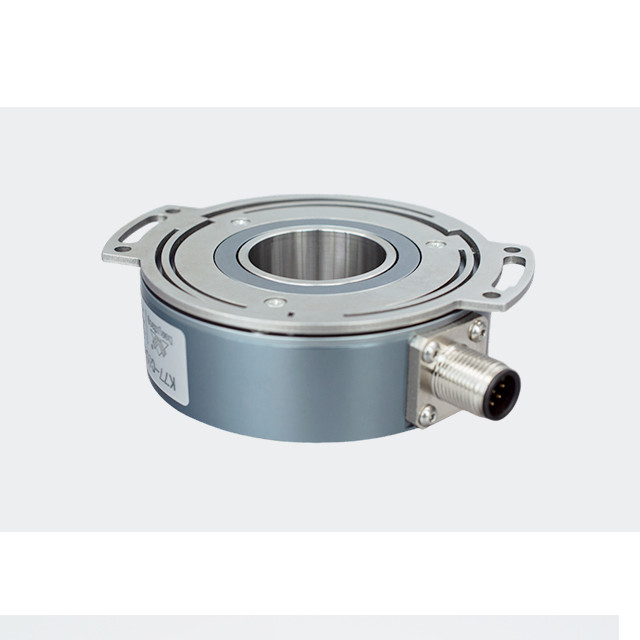

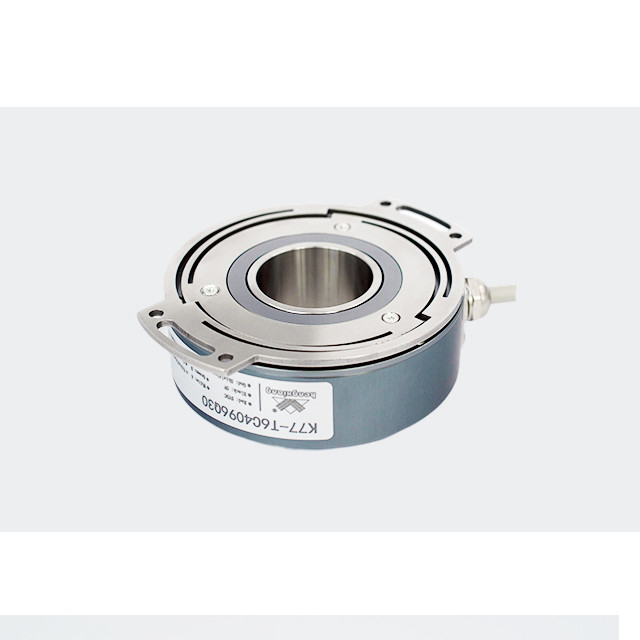

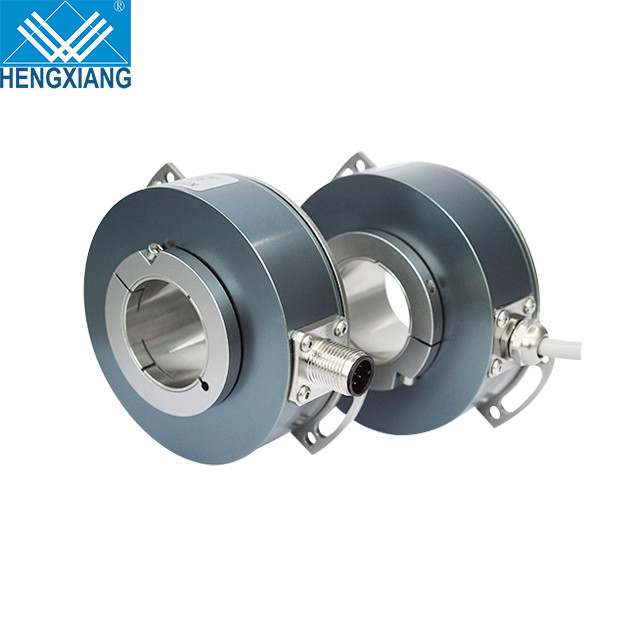

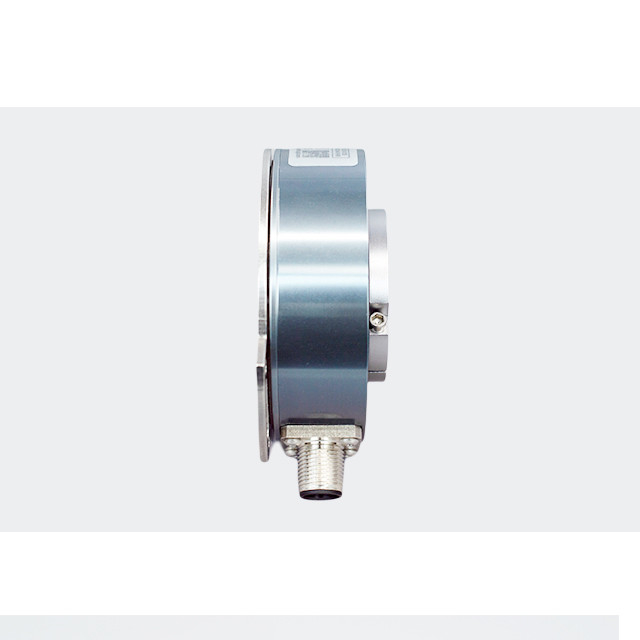

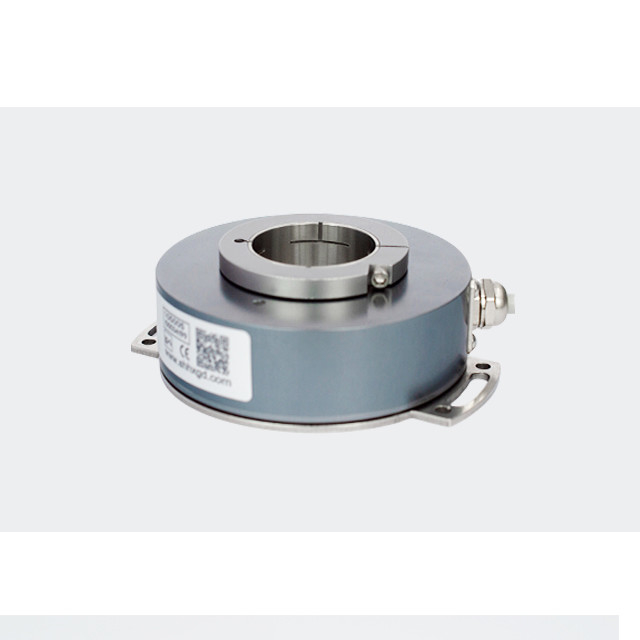

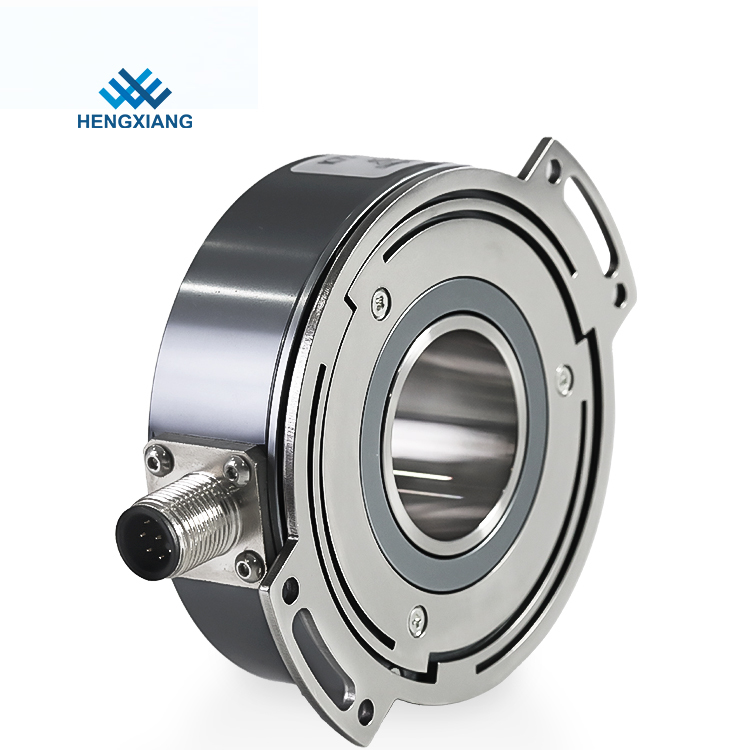

K77 IP65 high resolution customized 65536ppr incremental encoder hengxiang motor mechanical industry
Encoder definition:
It is a rotary sensor that converts the rotational displacement into a series of digital pulse signals, these pulses can be used to control the angular displacement, if the encoder is combined with a gear bar or screw screw, it can also be used to measure linear displacement.
1. Feature: K77 customization hollow shaft incremental encoder, resolution/installation/shaft can be customized. Please consult sale for more information.
2. Application: Motor, CNC and other industrial automation field.
3. Important parameter: Resolution up to 65536ppr, high protection grade IP65
|
Items
|
Basic parameters
|
|
Encoder type
|
Incremental encoder
|
|
Brand
|
HENGXIANG
|
|
External diameter
|
77mm
|
|
Thickness
|
31mm
|
|
Installation dimension
|
R85mm(spring plate 77B85)
|
|
Hollow shaft type
|
through hole
|
|
Hollow shaft diameter
|
25mm,30mm
|
|
Resolution
|
500; 512; 1000; 1024; 2000; 2048; 2500;
|
|
4000; 4096; 5000; 8000; 8192; 10000ppr
|
|
Output phase
|
Phase A+,B+,Z+,A-,B-,Z-
|
|
Supply voltage
|
DC5V ; DC8-30V
|
|
Outlet type
|
Radial socket (M12, 8pin male connector); Radial cable
|
|
Output mode
|
NPN(Open Collector Output)
|
|
Push-pull output
|
|
line drive (26LS31, DC5V) TTL
|
|
line drive (26C31, DC5V) TTL
|
|
line drive (DC8-30V) HTL
|
|
Consumption current
|
100mA MAX
|
|
Top response frenquency
|
100KHZ
|
|
Allowable ripple
|
≤3%rms
|
|
Load Voltage
|
≤DC30V
|
|
GND
|
not connect to encoder
|
|
Mark to Space ratio
|
45% to 55%
|
|
starting torque
|
less than 80x 10-3 N.m
|
|
Intertia moment
|
less than 100x 10-6kg.m2
|
|
Shaft load
|
Radial 70N; Axial 50N
|
|
Top REV
|
3000RPM ; IP65
|
|
Bearing life
|
1.5x109 revs at rated load(100000hrs at 2500RPM)
|
|
Environmental temperature
|
Operating:-20 ～+85°；storage:-25 ～+90°
|
|
Enviromental humidity
|
Operating and storage: 35-85%RH(noncondensing)
|
|
Vibration(endure)
|
Amplitude 1.52mm,5-55Hz,2 hours for three axis individually
|
|
Sock(endure)
|
1960m/s2 ,11 ms three times for X,Y,Z direction individually
|
|
Shaft Material
|
Stainless steel
|
|
Shell Material
|
Dia cast aluminium
|
|
Cable length
|
1000mm
|
|
Protection grade
|
IP65
|
|
Cable length
|
1M (cable length could be added appropriately by
|
|
|
require, but it need payment individually)
|
|
Certification
|
CE
|
|
package
|
Carton box
|
|
Net weight
|
About 500g (with package)
|
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients . "HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project. Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome all customers to visit our company, to review and custom "HengXiang" brand products .
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Are you a factory or a trading company?
A: we are 100% factory with our brand.
Q: What’s your brand?
A: HENGXIANG
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have
any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept T/T, Credit card, Paypal, Western Union or cash.Q: Can I pay a visit to your factory?
A: Yes, you we welcome to visit our factory at any time if convenient.
Q: How long is your delivery time?
A: Usually 3 working days for sample, 7-15 days for mass production,
The production date is according to order quantity.
