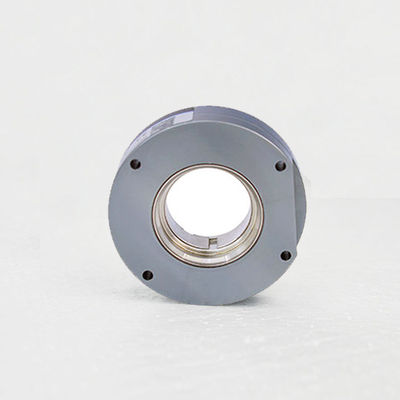

Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder

Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder

Products - Hollow Shaft Absolute Encoder
  • High Light

    IP50 Absolute Hollow Shaft Rotary Encoder

    ,

    Hollow Absolute Rotary Encoder

    ,

    Absolute Rotary Encoder 24 Bit

  • Encoder Type
    Absolute Encoder
  • External diameter
    55mm
  • Installation Dimension
    49.2mm
  • Hollow Shaft Diameter
    Through Hole 14mm; 15mm; 19mm; 20mm; 24mm
  • Resolution
    Multi-turn: 1716=17+16Bit, 1916=19+16Bit,2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
  • Interface
    E=SM08B-GHS-TB
  • Communication
    B=BISS-C; S=SSI
  • Electrical Connection
    Radial Socket
  • Output mode
    M=multi-turn; S=single-turn
  • Protection
    IP50
  • Place of Origin
    Shanghai,China
  • Brand Name
    HENGXIANG
  • Certification
    CE,ISO9001
  • Model Number
    MP55
  • Minimum Order Quantity
    1pcs encoder to start order
  • Price
    negotiable
  • Packaging Details
    each 1 piece was packed into single carton box
  • Delivery Time
    3-5 working days for sample order, 7-15 working days for mass order
  • Payment Terms
    D/A, D/P, T/T, Western Union, Credit Card, Master Card,Paypal, etc
  • Supply Ability
    100K pieces per year

Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder

  • Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder
  • Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder
  • Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder
  • Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder
Get Price Contact Now

Absolute Rotary Encoder MP55 size 55mm 17-24 bit multi turn SSI IP50 hollow encoder





This product is a mechanical rigid connection design, high precision Absolute optical encoder, capable of outputting 24Bits of single-turn position information and reading up to 24Bits of multi-turn position information. The product is compact, highly integrated and easy to install, which can solve the installation problems of users in limited space.



Communication

B=BISS-C; S=SSI



Application

Servo motors, robots and other industrial automation field.



Basic Parameters

Items Basic parameters
Brand Hengxiang
Encoder type Absolute encoder
External diameter 55mm
Thickness 14.5mm
Installation dimension 49.2mm
Hollow shaft type Through hole
Hollow shaft diameter 14mm; 15mm; 19mm; 20mm; 24mm
Resolution single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface E=SM08B-GHS-TB
Communication B=BISS-C; S=SSI
Electrical connection Radial socket
Output mode M=multi-turn
S=single-turn
Scanning principle Reflective grating code
Accuracy ±40"
Response speed Normal action: 6000min
RMS position signal noise ±2@18 bits/r
Communication clock frequency ≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time typical value: 13ms
Absolute position sampling period ≤75 ns
Allowable speed ≤32200 r/min (restricted by mechanical speed limit)
Cable Differential twisted-paired cable
Cable length 200mm-10000mm
Mechanical Connection With bearing& encircled locking shaft
Starting Torque less than 9.8×10-3 N.m
Inertial moment less than 6.5×10-6 kg.m2
Shaft load Radial 30N; Axial 20N
Slew speed ≤6000rpm
Shell Material Aluminum
Weight about 90g
Environmental temperature Operating: -20~+95℃; Storage: -25~+100℃
Environmental humidity Operating and storage: 35~85%RH(Noncondensing)
Vibration Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock 980m/s2 11ms, three times for X,Y,Z direction individually
Protection IP50




Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 0

  •



Model select guide

Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 1

Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 2
Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 3

Basic dimensions

Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 4


Product Usage
Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 5

  •

    • Product usage introduction



-Intelligent Fertilizer
--Lifting and metallurgical --three-phase asynchronous motors
-Solar air -conditioner
-Armature rotor test system
-High-speed cutting machine
Automatic rut -tester
-Intelligent equipment
Petroleum -machinery and equipment
-Electrical Equipment
-Invertery
Company Introduction
ShanghaiHengxiangOptical Electronics Co.,Ltd, located on Shanghai, an international city of China, set up in 2001, is a professional manufacturing high-tech corporation, providesresearch and manufacturing ,entityintegrating optical,mechanical and electronic design. Now we have finished primary pipelining of encoder manufacture. After development for many years, rotary encoders now have 10 series and over 100 sorts, both popularly sale around the world. Our rotary encoders are widely used for automation field, such as, Office equipment ,Water conservancy equipment,Electrical equipment,Textile machinery,Carpentrymachinery,Injection machinery,Vulcanizateequipment ,Medical device,CNC machine,Metallurgical machine,Printing machinery,testing machine,Elevator,Servo motor,Packing machine, etc. , and has won trust and high reputation from clients .
Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 6
Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 7
Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 8



"HengXiang" brand encoder, has ISO9001:2000 Quality Management System Certificate and CE Certification, moreover, we have own
invention patents five and utility model patents five, also passed Shanghai New and High-tech AchievementsTransformation Project.
Our target:Meeting Client's Requirement,Creating Social value,serving clients attentively and Achieving win-win. Sincerely welcome
all customers to visit our company, to review and custom "HengXiang" brand products .
Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 9
Packing&Shipping
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 10
Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 11
Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 12
Absolute Rotary Encoder MP55 Size 55mm 17-24 Bit Multi Turn SSI IP50 Hollow Encoder 13
